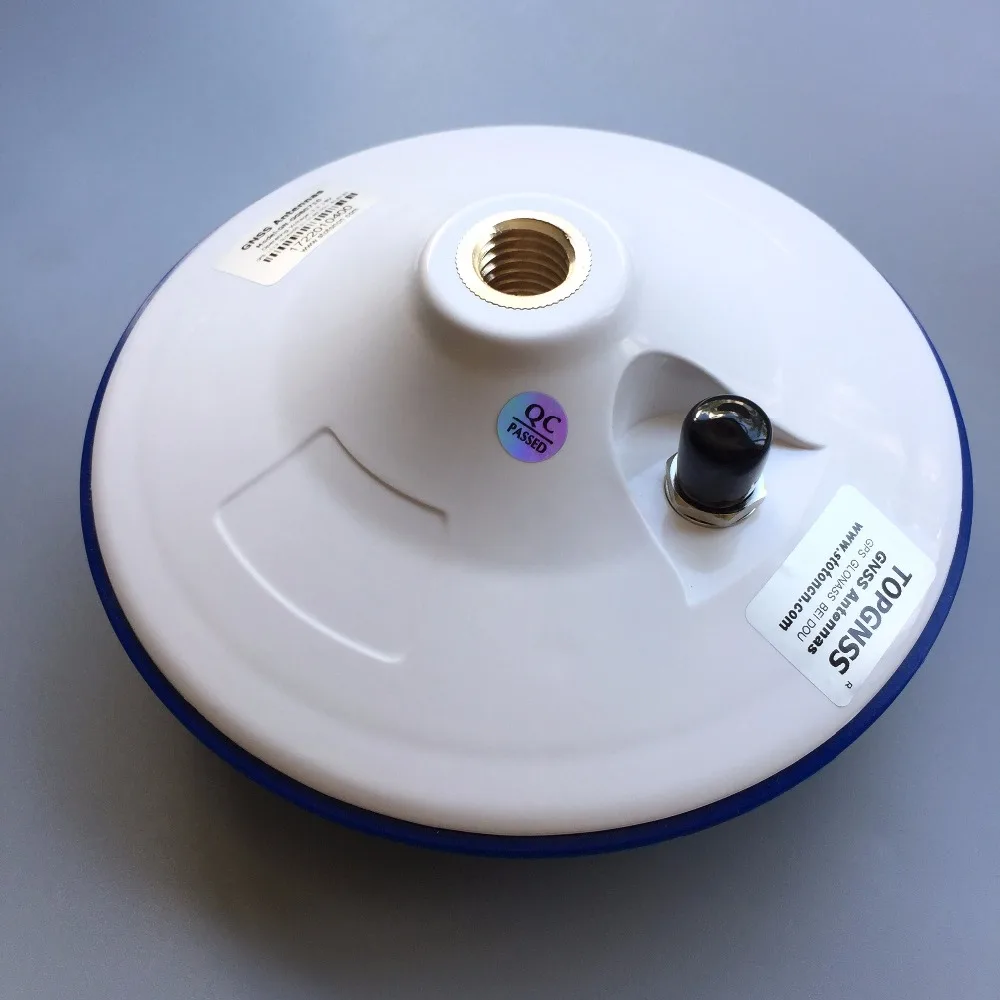

GNSS antenna,GPS/GLONASS/BEIDOU antenna,RTK High-Precision surveying antenna for RTK GNSS mapping.

GNSS antenna GPS GLONASS BEIDOU antenna RTK High Precision surveying antenna for RTK GNSS mapping
Cliquez pour voir les détails
100 % d'acheteurs ont apprécié ce produit!
Disponibilité: en stock
Prix:  63.00 € / piece



45 jours argent retour 45 jours argent retour Retours acceptés si le produit n'est pas tel que décrit, l'acheteur paie l'expédition de retour; ou garder le produit et d'accord de remboursement avec le vendeur.
Livraison à temps Livraison à temps
Garanties: livraison à temps 60 jours

Share:

GNSS.Store Promotional offers sold in 10PCS If you have special needs, buy more quantity, you can always contact us, if you are very satisfied with our products, please give us 5 points evaluation, thank you! This product is a complete set of sales containing: GNSS receiving antenna 1PCS GPS:L1/L2/L5/ BEIDOU:B1/B2/B3 GLONASS:L1/L2 Galileo:L1/E5b/E5a

High precision measurement of GNSS antenna

Support: GPS / GLONASS / BDS three satellite system. Features:Integrated GPS L1 & L2 and GLONASS G1 & G2 ,BDS B1,B2.B3 ,Galileo.GNSS system seven-band measurement antenna, can be widely used in geodesy, bridge construction, marine survey, underwater terrain measurement and other occasions. The antenna uses multi-feed point design to ensure that the antenna phase center and geometric center coincidence, improve the accuracy of measurement. Built-in low-noise amplifier module, the use of pre-and multi-stage filter filter interference signal to ensure that the normal work in harsh electromagnetic environment. Small size, light weight.

(1)antenna characteristics:

(Frequency Range)

1555MHz~1615MHz/1198MHz~1278MHz

(Impedance)

50Ohm

(Polarization)

(RHCP)

(Axial Ratio)

<3dB

(Elevation Coverage)

360°

(VSWR)

≤2.0

(Gain of Antenna)

5dBi

(Phase Center Error)

±2mm

2.low noise amplifier indicator

(LNA Gain)

42dB

(Noise Figure)

≤1.5dB

(VSWR)

≤1.5

(VSWR)

≤1.5

(Gain Flatness)

±1dB

(Pout at 1dB Gain

Compression Point)

≥0dBm

(LNA Drain Voltage)

3.3-18VDC

(LNA Current Consumption)

≤45mA

(delay)

<5ns

3.structural characteristics

(Dimension)

145×60mm

(RF output Connector)

TNC-C-K

(Mounting Method)

5/8-11 Threaded installation

(Waterproof Grade)

IP67

(Shockproof Grade)

IK08

4. working environment

(Operating Temp.)

-40℃~+85℃

(Storage Temp.)

-40℃~+85℃

5.antenna size structure (unit: mm)Packing list:

Included:1PCS GNSS antenna.

If you have special needs, buy more quantity, you can always contact us, if you are very satisfied with our products, please give us 5 points evaluation, thank you!
